Small Angel Neutron Scattering (SANS)

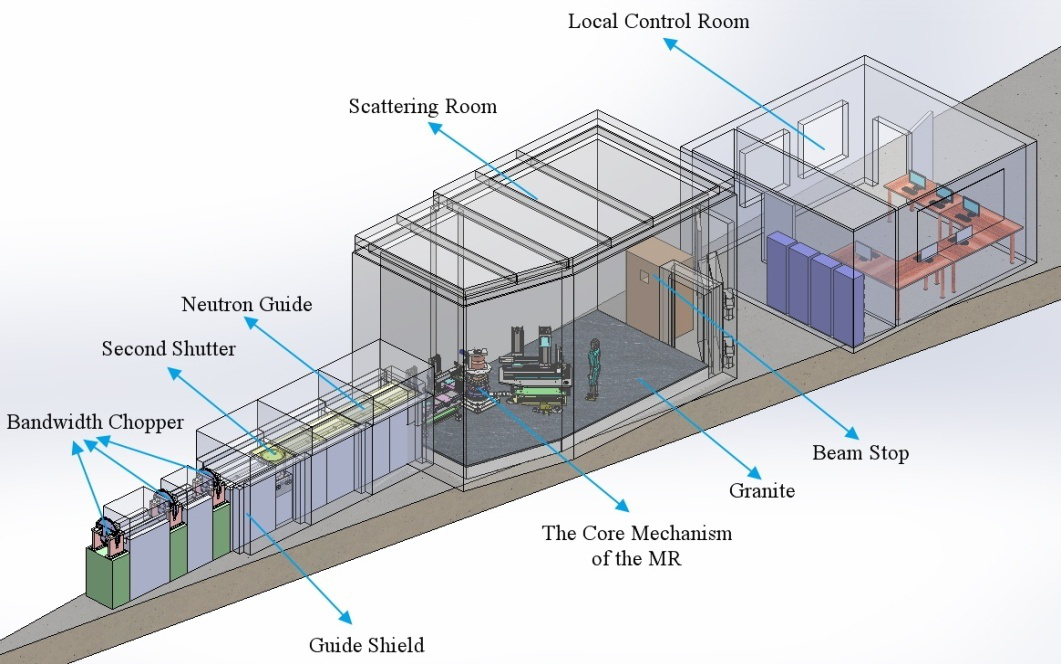

Multiple Purpose Reflectometer

General Purpose Powder Diffractometer (GPPD)

The Small angle neutron scattering (SANS) of CSNS is a very important neutron technique useful for probing structures from around 1 nanometre to more than 100 nanometres. It has a wide range of applications from studies of polymers to nanoparticles.

Performance:

1. Reliable SANS data between 0.01~0.5 ?-1.
2. Instrument resolution better than ~30% around Qmin.
3. Good dynamic range, sample space.
4. Variable sample size.

Performance:

1. Vertical sample geometry: solid film.
2. Reflectivity/diffraction.
3. Best resolution ΔQ/Q < 1%.
4. Polarizing analysis for spinoelectronics.
5. In-suit study on growing films.
6. In-suit MOKE magnetic analysis Off-specular scattering.
7. Grazing-incidence small-angle scattering.

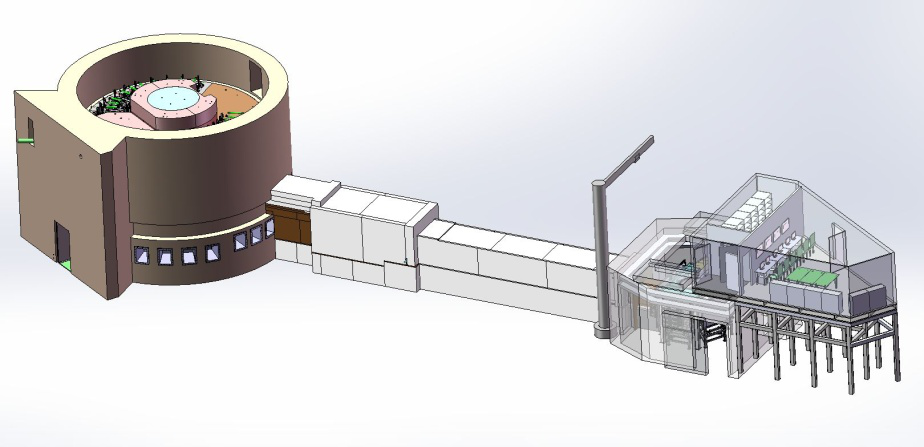

The General Purpose Powder Diffractometer (GPPD) of CSNS is useful for a wide range of structural studies, especially for most users to determine crystallographic and magnetic structures in general purposes.

Performance:

1. Best resolution Δd/d ~0.2 %.
2. ~ mimutes for a diffraction histogram used by Rietveld refinement on ~ 1-g-weight sample.
3. Easily loading the ancillary equipment such as cryostat, furnace and pressure cell
